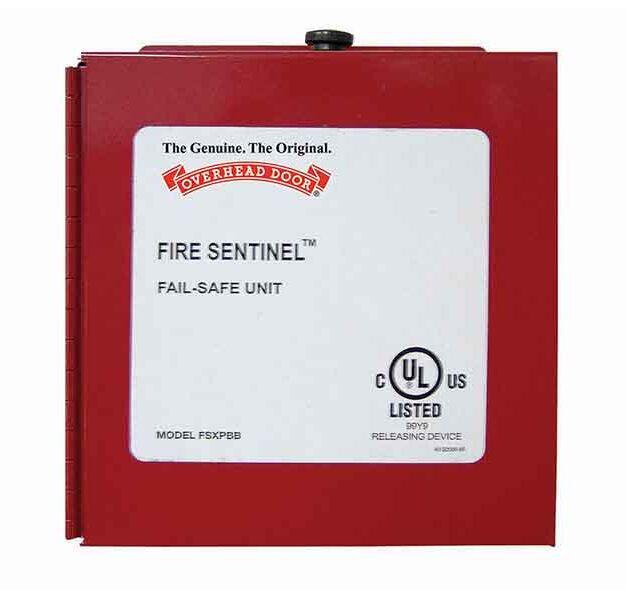

Fire Sentinel
The adjustable alarm time delay is factory set at 10 seconds but can be adjusted using a dipswitch to change the time for anywhere between 10-60 seconds. The auxiliary 24v DC output can be used to activate additional power devices. The Fire Sentinel comes with backup power to avoid automatic closure during power failures.
It has an ADA sounder/strobe warning before the door closes to alert people that the door is about to close. The fail-to-close safety timer gives you additional assurance of the maximum possible closure. The device will cause the door to stop if there is an obstruction in its pathway. The floor-level trouble indicator provides a visual indication of trouble from the floor.
Fire Sentinel Features
The Fire Sentinel can be used with these commercial fire-rated doors: 630, 631, 634, 635, 640, 641, 660, 661, or 662.
- Features
- Floor-level testing, reset and trouble indication available for ease of operation
- Intelligent operation feature recognizes when the door is closed, inhibits release to eliminate time-consuming resets and
prevents damage to the door release mechanism** - Available in 120V AC or 24V DC for motorized or non-motorized doors
- Battery back-up provides extra protection in the event of a power loss (FSBX and FSCX models)
- Diagnostic capabilities via LED status lights confirm the operation of the unit
- 10-second time-delay on alarm (up to 60-seconds optional) as allowed by Authority Having Jurisdiction
- Optional alarm on power loss provides additional safety measure (FSBX and FSCX models)
- Relay contact outputs can be utilized to indicate active alarm and troubles
- Sounder/strobe alarm available (standard on FSCX model)
- UL 864 and NFPA® 72 compliant
- Compatible with UL 325 complaint operators – maintains stop on obstruction option†
* As defined by NFPA® 80.
** For non-motorized doors, this feature requires a proximity switch.
† Available on FSCX models only.
