High Speed Metal Doors
Overhead Door™ high-speed metal doors that are both secure and aesthetically pleasing with opening speeds up to 80” per second. Engineered for high cycles the RapidShield™ and RapidView™ doors have a springless design requiring minimal interruption for maintenance.
#
RapidView® Model 999
High Performace Doors That Are Fast, Reliable, & Versatile
RapidShield™ and RapidView™ feature a patent-pending integrated curtain-monitoring device and monitored wireless reversing edge. Exterior high-speed metal doors with a high cycle, a springless design that offers sleek looks and reliable performance. Standard silver powder coat made to mimic anodized aluminum.
Ideal Applications Include
Government & Public Facilities
Parking Garages
Manufacturing
Security
Automotive
Warehouse Solutions
High Speed Metal Doors
High Performace Metal Doors deliver security and durability
RapidShield® Model 998 provides a solid aluminum curtain in an elegant, durable, dual-walled aluminum style. This door is ideal for applications where security and privacy are a priority.
RapidView® Model 999 is a full-view door featuring scratch-resistant polycarbonate panels for maximum light infiltration. It is perfect for high-traffic applications requiring aesthetic appeal and visibility.

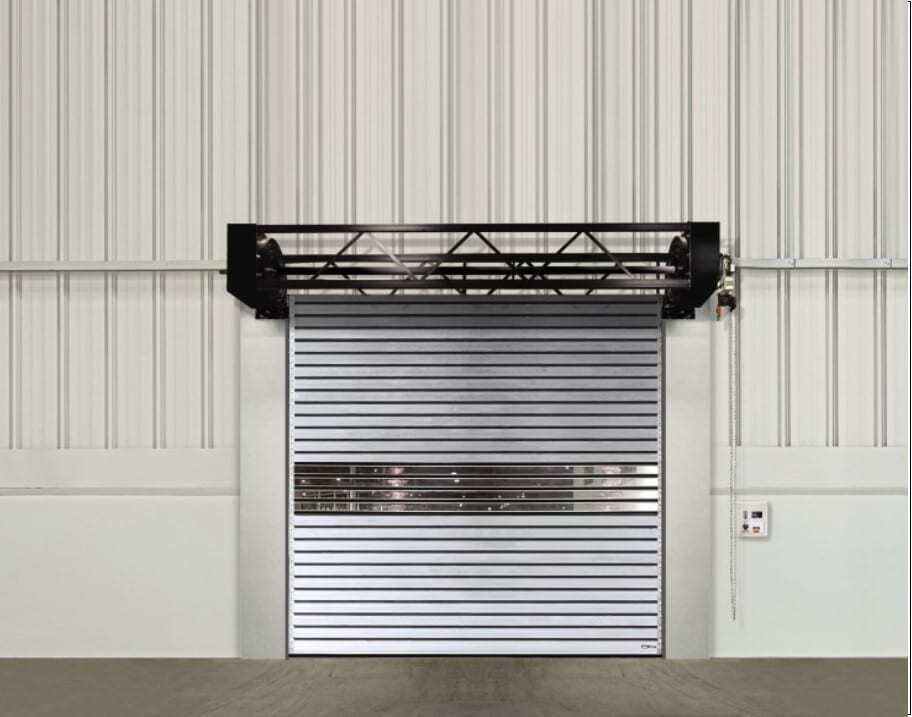

RapidShield® High Speed Exterior Metal Door – 998
RapidShield® Model 998 is a heavy-duty exterior door with a solid aluminum curtain that has up to 80” per second opening speeds. Engineered for high cycles and easy operation, RapidShield® Model 998 has been independently tested and is capable of withstanding wind loads of up to 100 psf*.
With a focus on safety, RapidShield® Model 998 also features a patent-pending integrated curtain-monitoring device, a safety light curtain, and a monitored wireless reversing edge. This door is perfect for applications where security and privacy are a priority
Standard max width: 26′
Standard max height: 21′
Wind Load* Up to 100 psf
Material: Aluminum
Open Speed: Up to 80″ per second
Warranty: 5-year Limited
Door Material: Dual-walled aluminum
Vision Option: Optional scratch-resistant polycarbonate panels
Perforated Option: Optional powder coat-matched perforated slat for 24% open area
Operation: Direct drive motor and gearbox system
Control Panel: Variable frequency drive NEMA 4X cULus listed
Obstruction Detection: Integrated light curtain
Reversing Safety Edge: Wireless reversing edge
Electrical Availability: 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†;
(†requires stand-alone mounted transformer)
Wind Load* Up to 100 psf
* Pressure/wind resistance value is the ultimate pressure tested at a door width of 15′.
**Up to 50 psf for RapidShield® Model 998 with optional vision panels.
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED warning light, horn/strobe combination, rotating warning light
- A slim guide is available to reduce jamb side room
- RapidShield® Model 998 available with scratch-resistant vision slats
- Insulated slat available for RapidShield® Model 998
- Lintel cover
- Photo eyes
- Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting
- Impact rating in accordance with the Florida Building Commission; certified for Florida’s High Velocity Hurricane Zone
Standard Exterior Color
Gray
Powder Coat Color Options
Premium PowderGuard® powder coat options are available in approximately 200 colors and custom matching to specification.
Product Literature
BIM
Shop Drawing
- High Speed Metal Door CAD Drawing – Model 998
- High Speed Metal Door CAD Drawing – Model 998 (Page 2)
- High Speed Metal Door CAD Drawing – Model 998 (Page 3)
- High Speed Metal Door CAD Drawing – Model 998 (Page 4)
Specifications
Instructional Manuals
Warranties
RapidView™ High Speed Exterior Full-View Metal Door – 999
The sleek and sophisticated RapidView® Model 999 is a full view door featuring scratch-resistant polycarbonate panels with up to 80” per second opening speeds. Engineered for high cycles and easy operation, RapidView® Model 999 has been independently tested and is capable of wind load up to 50 psf*.
The simple installation and low maintenance add to the attractiveness of the door and feature completely hinged guides, fully assembled curtains, and a pre-wired motor connection. RapidView® Model 999 is perfect for high traffic applications requiring aesthetic appeal and visibility
Material: Aluminum, Polycarbonate
Open Speed: Up to 80″ per second
Max Width: 20′
Max Height: 21′
Wind Load: Up to 50 psf
Warranty: 5-year Limited
#
RapidView™ Model 999 Shown with optional lintel cover
Door Material: Aluminum and scratch-resistant polycarbonate
Perforated Option: Optional powder coat-matched perforated slat for 24% open area
Operation: Direct drive motor and gearbox system
Control Panel: Variable frequency drive NEMA 4X cULus listed
Obstruction Detection: Integrated light curtain
Reversing Safety Edge: Wireless reversing edge
Electrical Availability: 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†;
(†requires stand-alone mounted transformer)
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED warning light, horn/strobe combination, rotating warning light
- Slim guide available to reduce jamb side room
- Lintel cover
- Photo eyes
- Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting
Standard Exterior Color
Gray
Powder Coat Color Options
Premium PowderGuard® powder coat options are available in approximately 200 colors and custom matching to specification.
Product Literature
BIM
Specifications
Instructional Manuals
Warranties
General Features & Benefits
Engineered For High Cycles
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- The virtually frictionless design ensures minimal noise and wear
Simple Installation & Low Maintenance
- Completely hinged guide
- Fully-assembled curtain arrives pre-wrapped in headplate and trusses ready for installation.
- Pre-wired motor connection and plug-and-play accessories
Safety
- The patented integrated curtain-monitoring device ensures the door has a redundant system to monitor the position of the door.
- Safety light curtain minimizes contact with objects in the doorway
- Monitored wireless reversing edge
- RapidShield® Model 998 has a high strength dual-wall aluminum curtain construction, providing security and privacy.
Sleek and Sophisticated Appearance
RapidView® Model 999 features crisp lines of corrosion-resistant aluminum, providing an architecturally striking look. Clear vision high impact-resistant polycarbonate delivers maximum light infiltration into the space.
Smooth & Easy Operation
- A gravity drive system coupled with a variable frequency drive eliminates sudden jolts and wear and tear from door start/stop.
- The Patent-pending headplate design utilizes high-strength rubber rollers, which prevent the curtain from wrapping on itself and provide smooth, quiet door operation.
- Independently tested and capable of wind load* of up to 100.0 psf for RapidShield® Model 998 and 50.0† psf for RapidView® Model 999
Options
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED traffic light, horn/strbeo combination, rotating warning light
- A slim guide is available to reduce jamb side room (size limitations may apply)
- Programmable LED lighting system – 3′ tall light bar with red, yellow, and green lights
- Insulated slat available for RapidView® Model 998
- Square hood
- Photo eyes
- Perforated slats up to 24% open area (up to 20’ width)
- Vision slats (Model 998) (p to 20′ width)
- FBC HVHZ impact-rated certification (Model 998)
Warranty:
5-Year Limited
Overhead Door™ High Performance Collection
With robust safety features and a pressure-resistant design, these high performance doors will keep your facility running securely, efficiently, and environmentally controlled.
