EverGuard™ Storm Shelter Doors 610 Series
Overhead Door™EverGuard™ Storm Shelter Doors start with the features of our Model 610 with reinforcements for additional safety. These doors feature 12-gauge curved slats that provide a natural watershed, helping to reduce corrosion. The curved slats have free-acting interlocking joints that permit easy articulation when the door coils. They feature a powerful double-angle bottom bar designed to reinforce the door’s structural integrity and help prevent unwanted entry.
Strength • Security • Shelter
Model 610FR comes standard with an Overhead Door® RSX® Fire Door operator, built with a fuse link mechanism for a drop-on alarm and integration into a single push-button activation system. Models 610F and 610FE come standard with an Overhead Door® RHX® Service Door operator.
Ideal Applications Include
Government Facilities
Public Facilities
Schools
Healthcare
Security
EverGuard™ Storm Shelter Doors Overview
The EverGuard™ series is designed to meet stringent design standards relative to safety and shelter, ensuring that these buildings are protected in times of emergency.
Door Options
Galvanized steel bottom bar and angles
PowderGuard® Weathered finishes to provide a thicker, more scratch-resistant coat for added protection (option only on forced entry, not available if ballistics is required)
Mount type: Bench, top, or wall mount
Actuators: Transmitter, additional push button stations, pull station, key switch, horns or strobes, loop detector, motion detector, photo eyes

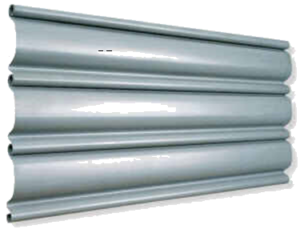

Slat Profile
C-600 slat – a curved slat profile that measures
6″ (152 mm) in height and 1 3/8″ in depth.
Slats can be replaced quickly, minimizing downtime.
Standard Exterior Color
Finish: PowderGuard® powder coat in gray
Gray
Powder Coat Color Options
197 optional RAL powder coat color options are available. The actual door color may vary from the digital representation shown here. Color samples are available; please get in touch with us.
Door mount options: Interior or Exterior
Operation mounting options: Bench, Front of hood, Top of hood, Wall
Operation voltage options: 208/230/460V 3Phase 60Hz, 208/230/460V 3Phase 60Hz, 575V 3Phase 60Hz
Additional operation options: Timer to close, auxiliary output module
Operator accessories: receiver, transmitter, push button station, pull station, key switch, motion detector, loop detector, Traffic light, ADA horn/strobe.
Curtain Finish options: Galvanized G90, PowderGuard® Premium Powder Coat RAL, Custom Powder Coat
Guide and bottom bar finish options: galvanized hot dipped, powder coat black, powder coat gray to match curtain, RAL, custom, zinc rich
Hood finish options: primed gray, RAL, galvanized G90, gray primed G90, custom
Door Options
- Galvanized steel bottom bar and angles
- PowerGuard® Weathered finishes to provide a thicker, more scratch-resistant coat for added protection.
- Mount Type; Bench, Top or Wall Mount
Actuators
- Photo eyes for additional obstruction detection
- Motion Detector
- Loop Detector
- Horns and strobes
- Key Switch
- Pull Station
- Additional Push Button Stations
- Transmitter
Product Literature
Rolling Steel Shelter Doors Brochure
EVERGUARD™ MODEL 610FE NOW OFFERS A FORCED ENTRY AND BALLISTIC RATING
Specifications
Rolling Steel Storm Shelter Doors Full Line Specs
610FE Storm Shelter Doors Spec
610FR Storm Shelter Doors Specs
Warranties
Rolling Storm Shelter Warranty Models 610F & 610FE
Rolling Storm Door Model 610FR Warranty
Instructional Manuals
610F Series Face Mounted Installation Instructions
610F-610FE Rolling Steel Storm Shelter Door Installation Instructions
610FR Rolling Steel Storm Shelter Door Installation Instructions
EverGuard™ Tornado Resistant Shelter Door – 610F
Designed to meet the high wind load and impact requirements of FEMA 361, Model 610F is structural wind load design pressure tested to +/- 300 psf and is impact-rated for up to 100 mph. Rolling Steel Storm Shelter Door Model 610F is built to meet your most demanding and rigorous applications.
Warranty: 3-Year Limited
Applications include
- Storm Shelters
- Safe Rooms
- Emergency Centers
- 911 Call Centers
- Police and Fire Stations
- Schools.
Operation: RHX® service door operator with chain hoist override
Standard Spring: 10,000 cycles
Guides: Three steel angles
Bottom Bar: Double angle steel
Obstruction detection: Wireless sensing edge
Rolling Steel Storm Shelter Door Model 610F is built to meet your most demanding and rigorous applications.
Standard max width: 16′
Standard max height: 16′
Wind load
- Tested: +/- 300 psf (ICC-500/FEMA 361)
- Tornado: +/- 250 psf (ICC-500/FEMA 361)
- Hurricane: +/- 200 psf (ICC-500/FEMA 361)
Impact rated: Up to 100 mph
Curtain 12-gauge galvanized steel
Hood 24-gauge galvanized steel

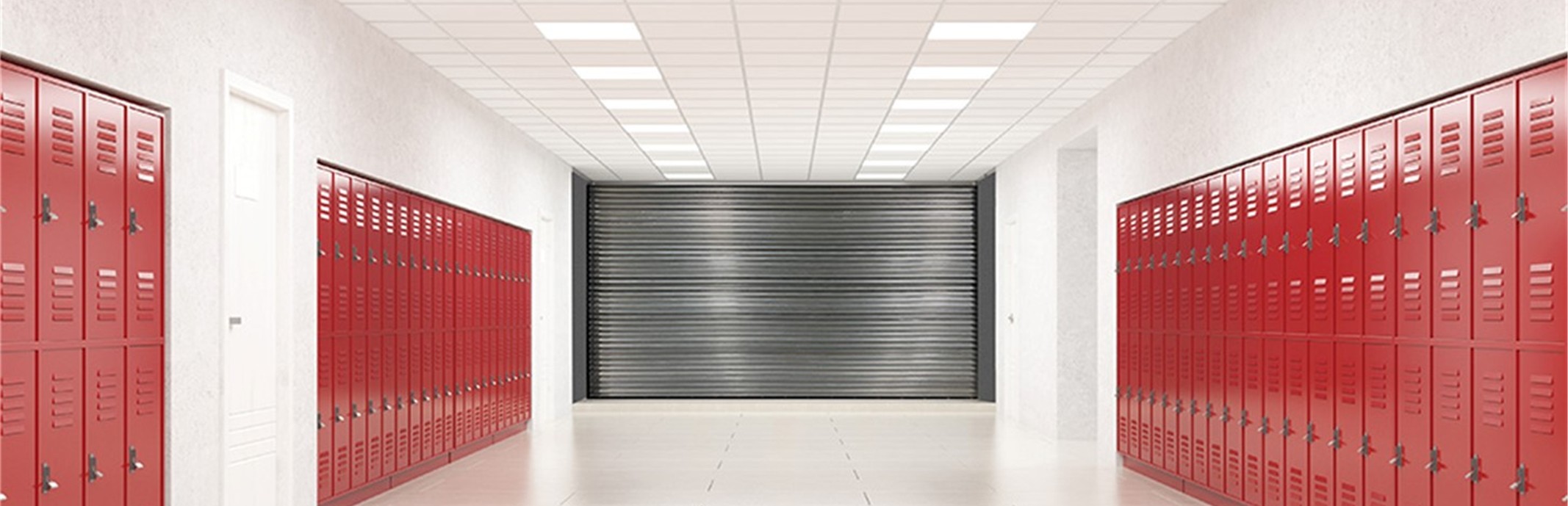

EverGuard™ Fire Rated Shelter Door – 610FR
Rolling Steel Shelter Door Model 610FR bears the Warnock Hersey (WH) fire safety mark, indicating compliance with UL 10B, NFPA 252, and CAN/ULC S104. Model 610FR is fire rated for up to 4 hours. This fire rated shelter door combines durability and safety where it’s needed the most
Warranty: 3-Year Limited; 10K Cycle limited on door system
Applications include
- Emergency Centers
- Schools.
- Gymnasiums
Wind load
- Tested: +/- 300 psf (ICC-500/FEMA 361)
- Tornado: +/- 250 psf (ICC-500/FEMA 361)
- Hurricane: +/- 200 psf (ICC-500/FEMA 361)
Operation: RHX® service door operator with chain hoist override
Standard Spring: 10,000 cycles
Guides: Three steel angles
Bottom Bar: Double angle steel
Obstruction detection: Wireless sensing edge
This fire-rated shelter door combines durability and safety when needed the most.
Standard max width: 11′
Standard max height: 11′
Curtain 12-gauge galvanized steel
Hood 24-gauge galvanized steel
Impact rated: Up to 100 mph
Warnock Hersey: (WH) Fire rated up to 4 hours
EverGuard™ Forced Entry Shelter Door – 610FE
When safety and property protection are priorities, Model 610FE withstands the tough requirements for commercial applications. It is ballistics rated for .22 LR—.38 special (NIJ 0108.01) and meets the requirements for up to 30 minutes of forced entry per ASTM F3038-21.
Warranty:
3-Year Limited; 10K Cycle limited on door system
Applications include
- Safe Rooms
- Store Fronts
- Schools.
Operation: RSX® service door operator
Standard Spring: 10,000 cycles
Standard mounting: Face-of-wall
Guides: Three steel angles
Bottom Bar: Double angle steel
Obstruction detection: Wireless sensing edge
Forced Entry and Ballistic Rated Shelter Door.
Standard max width: 16′
Standard max height: 16′
Curtain 12-gauge galvanized steel
Hood 24-gauge galvanized steel
Forced Entry ASTM F3038-21 Up to 30 minutes
Ballistics Rating .22 LR – .38 special (NIJ0108.01)
