Side-Folding Open Air Grilles 681/683
Side-Folding Open Air Grilles 681/683 are ideal for applications where security is a priority, but you want to maximize air circulation, light infiltration, and visual access to interior spaces. These grilles secure premises and guard against theft and debris with superior compactness and nearly endless design possibilities.
.

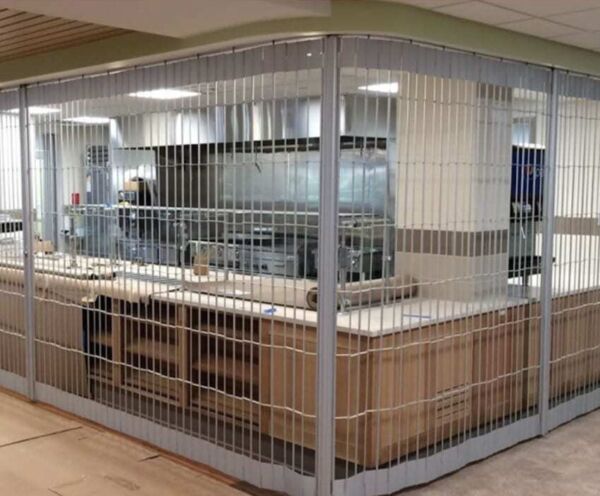

Model 681,Open Air Security Grille, Standard Straight Pattern Gille
Open-air side-folding grilles provide security while allowing air circulation and full visual access to interior spaces. This security grille offers a wide range of features to fit almost any application where an open-air grille satisfies security requirements, such as in retail environments, malls, schools, offices, and airports.
Ideal Applications Include
Government Facilities
Public Facilities
Automotive
Food & Beverage
Side-Folding Open Air Grilles 681/683 Overview
Our Side-Folding Security Grilles provide attractive solutions for various retail, commercial, and industrial applications. Our side-folding grilles boast the shortest stacking dimension of any grille available today and feature a clear anodized finish in various patterns and colors. – our comprehensive line of security grilles affords reliable security and peace of mind.
Material: Steel
Warranty: 24 months OEM limited
Curtain Material: Truss-like aluminum
.
Model 681,standard Body Brick Pattern, CleaAanodized Auminum
Model 681
.
Model 683,Standard Body Brick Pattern, Clear Anodized Aluminum
Model 683
Overview
Operation: Manual unless size requires chain hoist
Curtain Frame Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick
Panel Width: 7” (178 mm) standard body; 4” (102 mm) slim body
- Model 683 – 7” (178 mm) standard body
Finish: Aluminum clear anodized
Trolley assembly: 1 1/8” (29 mm)
Track Detail:
- Top-mounted, heavy-duty aluminum sections
- Height: 1 5/8″ (41 mm)
- Width: 1 3/8″ (35 mm)
Track Curves and Radius:
- 90°: Standard body: 14” (356 mm) radius;
- Slim body: 10” (254 mm) radius
- 120°, 135° and 150°; Standard and Slim body:
- 10” (254 mm) radius
Model 683 Radius: 14” (356 mm) standard body 22” (559 mm) wide body. Custom upon request.
Post types
Lead post
- Hook lock and wall channel; bi-part; top and bottom shoot bolts
Intermediate post
- Bottom shoot bolt
Trailing end post
- Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier.
Locking mechanisms:
Lead post
- Concealed cylinder-operated hook lock accessible from interior and exterior
Intermediate post
- Concealed cylinder-operated shoot bolt accessible from one side only
Trailing end post
- Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop
Product Literature
Security Grilles 681/683 Brochure
Security Grille Systems Brochure
Specifications
Dimension Chart Side Folding Security Grilles
Security Grilles Full Line Spec
Warranty
Door Options
- Thumb-turn guards and protection bars
- Anodized finish
- Vertical adjustment upward or downward
- Emergency Egress Door
Standard Body – Straight Pattern & Brick Pattern
- Space between tubes 2 15/16” (73.5 mm)
- Full panel width 7” (178 mm)
- Top plate 4 (102 mm)
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Spacer plate 1” (25.4 mm); 11 gauge
- Spacer tube ½” (12.7 mm) x 12” (305 mm)
- Bottom plate 4” (102 mm)
Slim Body – Straight Pattern & Brick Pattern
- Space between tubes 1 9/16” (40 mm)
- Full panel width 4″ (102 mm)
- Top plate 4” (102 mm); 11 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Spacer plate 1” (25.4 mm)
- Spacer tube ½” (12.7 mm) x 12” (305 mm)
- Bottom plate 4” (102 mm)
Door Options
- Thumb-turn guards and protection bars
- Anodized finish
- Vertical adjustment upward or downward
- Emergency Egress Door
Straight Pattern
- Space between tubes 2 ½” (63.5 mm)
- Full panel width 6 5/16” (160 mm)
- Top plate 5 ¼” (133 mm); 13 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” X 6 11/16” (3.17 x 15.9 x 170 mm)
- Spacer tube ½” x 12” (12.7 x 305 mm)
- Bottom plate 5 ¼” (133 mm); 13 gauge
- 6” (152 mm) On Center
Straight Pattern & Brick Pattern
- Space between tubes 2 ½” (63.5 mm)
- Full panel width 6 5/16” (160 mm)
- Top plate 5 ¼” (133 mm); 13 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” X 6 11/16” (3.17 x 15.9 x 170 mm)
- Spacer tube ½” x 12” (12.7 x 305 mm)
- Bottom plate 5 ¼” (133 mm); 13 gauge
- 6” (152 mm) On Center
