Coil-Away™ Rolling Steel Service Door 600
Coil-Away™ Rolling Steel Service Door 600 is ideal for light commercial applications where economy and functionality are important. A unique rolled galvanized steel slat curtain with bottom weatherseal comes standard, while the hood, wind load, and chain hoist operation are options that can expand its uses.
The Ideal Choice When Economy & functionality Are Essential
The Coil-Away™ 600 Series provides value and quality in a light-duty, highly attractive door. The CoilAway™ rolling door is fabricated of 24 or 26 gauge galvanized steel (depending on door width) for strength, and the door’s steel guides and brackets ensure durability.
Ideal Applications Include
Automotive
Warehouse Solutions
Public Facilities
Coil-Away™ Rolling Steel Service Door 600 Overview
It’s an ideal closure for any number of light commercial and industrial applications and is designed to fit openings up to 16′ wide and 16′ high (4877 mm by 4877 mm).
.

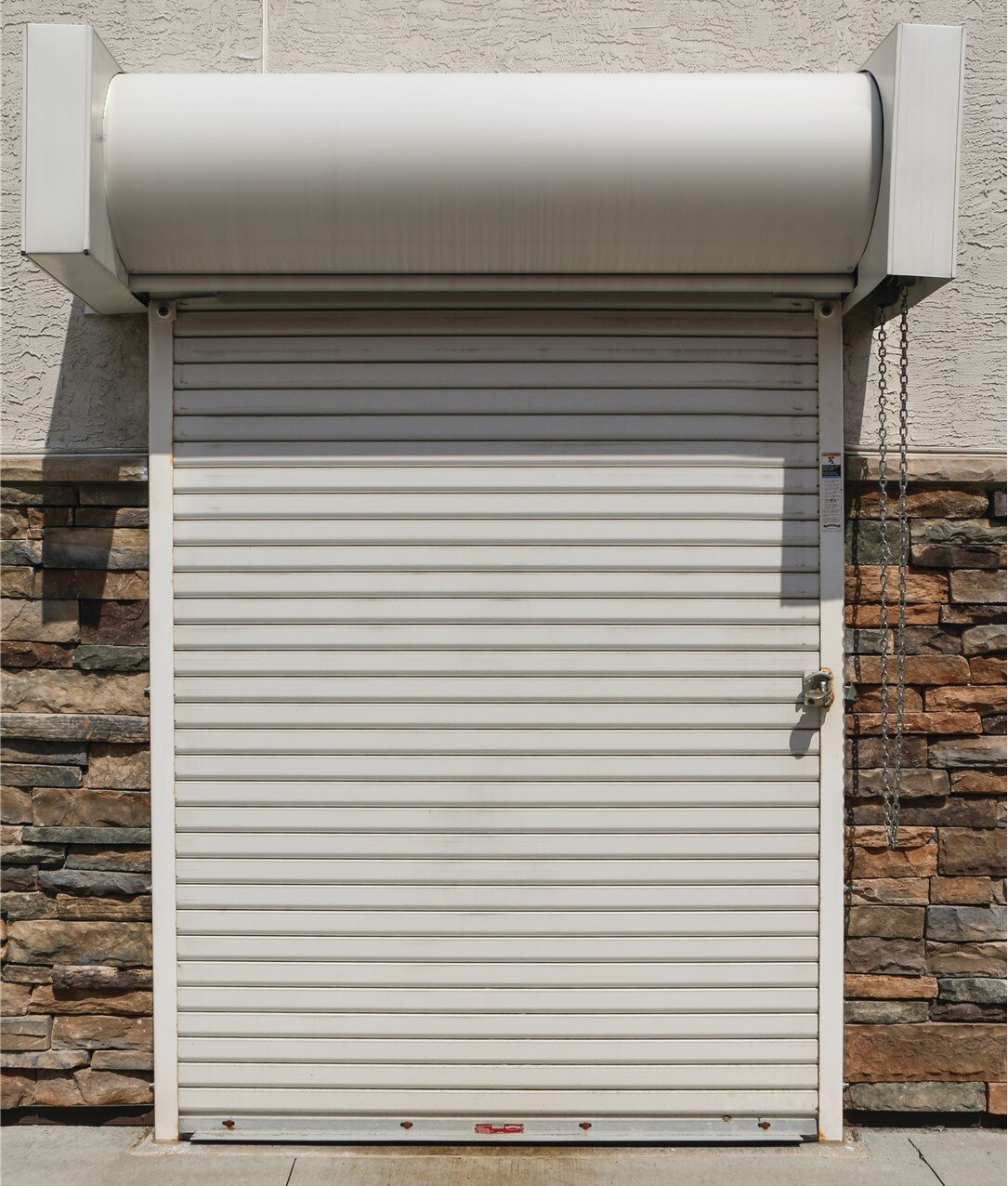

Rolling Steel Service Door 600,, White inish
Unique rolled galvanized steel slat curtain with bottom weatherseal comes standard
Material: Steel
Max Width: 16′ (4877 mm)
Max Height: 16′ (4877 mm)
Warranty: 24-month limited
Curtain
- 26-gauge galvanized steel up to 12’4″ (3759 mm) width;
- 24-gauge galvanized steel up to 16′ (4877 mm) width
Options available:
- Wind load
- Chain hoist or motor operation
- Hood
Finish: white/white, white/brown or brown/white
Standard mounting: Face of wall
Standard springs: 10,000 cycle
Operation:
- Manual: push-up up to 100 sq. ft. (9290 sq.mm) or 10′ x 10′ (3048 mm x 3048 mm)
- Chain hoist over 100 sq. ft. (9290 sq.mm) or 10′ x 10′ (3048 mm x 3048 mm)
Bottom Bar: Extruded aluminum with weatherseal
Slat Profile:
- Flat face with angled ends, type CAW
- CAW – available up to 16’0” (4877 mm) wide. No perforation or fenestration is available on CAW.
Loc:k: Slide bolts on push-up; padlockable chain keeper on chain hoist
Guides: Cold roll-formed channel and angle
- Chain hoist
- Electric operator
- Bottom sensing edge
- Hood
- Wind load package
- Galvanized steel endlocks
- Between-jambs mounting
- PowderGuard® finish offers full spectrum of approximately 200 colors as well as color-matching to specification
Exterior Color Options
White Brown
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors and custom matching to specification.
