Rolling Steel Service Doors 610/620
Rolling Steel Service Doors 610/620 design versatility is afforded by a wide array of options, including a selection of slat profiles, curtain materials, finishes, and colors, electric operation, and special features for unique applications. Model 610 is the best selling door of our line. Stormtite™ Model 620 is an ideal choice for keeping climate-controlled air in and the elements out.
Strong, Durable, Good Looks & Versatility
Each of our rolling service doors is configured for precise component fitting, simpler installation, lower maintenance costs, and trouble-free operation for life. The result is a door tough enough to perform exceptionally well in demanding industrial environments and attractive enough to meet exacting aesthetic requirements.
Ideal Applications Include
Manufacturing & Warehouse Solutions
Food & Beverage
Healthcare
Public Facilities
Government Facilities
Automotive & Parking Garages
Rolling Steel Service Doors 610/620 Overview
The Model 610 is built with a standard galvanized steel curtain or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options in curved and flat areas.
Security and Storm Shelter Model 610F is a specialized option for storm shelters, schools, and emergency operations centers. Model 610F provides tornado resistance while meeting the high wind load and impact requirements for FEMA 361.
The Stormtite™ 620 offers the option of a steel, stainless steel or aluminum curtain in various finishes and colors. For enhanced thermal efficiency, the 620 is furnished with flat slat profiles only, as well as weatherstripping on the exterior side of the guides, on the bottom bar and a hood baffle. Additional weather seals are available as options on the interior side of the guides and hood lintel.
..
Rolling Steel Service Doors. Heavy Duty Model 610, Fully Fenestrated, Interior View
..
Rolling Steel Service Doors. Heavy Duty Model 610, Fully Fenestrated, Interior View
Standard Max Width: 30’4″ (9144 mm)
Standard Max Height: 28’4″ (5893 mm)
Curtain
- 16 ga. galvanized steel up to 30’4″ (9246 mm) width
- 18 ga. galvanized steel up to 30’4″ (9246 mm) width
- 20 ga. galvanized steel up to 25’4″ (7722 mm) width
- 22 ga. galvanized steel up to 18’4″ (5588 mm) width
- 24 ga. Galvanized steel up to 15’4″ (4674 mm) width*
* not all slat profiles
Insulation: Foamed-in-place, CFC and HCFC-free polyurethane
R-value: 10.9 (1.91 W/m2)*; U-factor 0.87
Hood: 24 ga. galvanized steel
Wind load: 20 psf
Standard mounting: Face of wall
WeatherSeals:
- Bottom bar astragal
- Guides and hood baffle
Operation:
- Manual push-up up to 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm)
- Chain hoist over 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm)
Standard springs: 20,000 cycle
Bottom bar:
- Extruded aluminum with weatherseal up to 15’4″ (4674 mm)
- Back-to-back steel angles with weatherseal more than 15’4″ (>4674 mm)
Lock:
- Interior slide bolt-on push-up
- Chain keeper on the chain hoist
Warranty
- 24-month limited on door
- 3 year/20,000 cycles limited on door & operator system (when purchased together)
Model 610 Fenestration

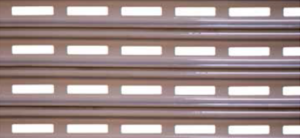

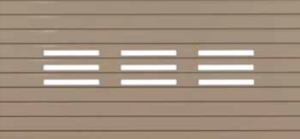

Curved slat, 3″ x 5/8″ fenestration F265 slat, 10″ x 1″ fenestration
Model 610
Slat profile
Standard Curved

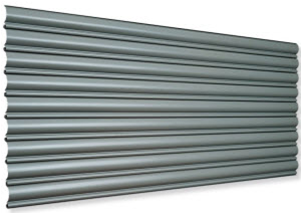

C-187 is standard in 22-gauge up to 15’4″ (4877 mm) wide. Other gauge options are available.
Optional Slats

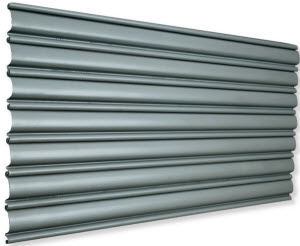

C-275 is an option up to 15’4″ and a standard for doors over 15’4″ wide (4877 mm). Gauge is dependent on opening width. Fenestrations are available in uniformly spaced openings of 5/8″ x 3″ (16 mm x 76 mm). Perforation or fenestration options for air and light infiltration are available on 18-gauge primed steel only.
OPtion – Flat
F-265 is available up to 30’4” (9246 mm) wide in 18 gauge. Other gauges are available. Fenestrations are available in uniformly spaced openings of 5/8″ x 3″ (16 mm x 76 mm) or 1″ x 10″ (mm x mm). Perforation or fenestration options available for air and light infiltration are available on 18 gauge primed steel only.
F-265E – 14 gauge extruded aluminum solid slat available up to 20’4” (6198 mm) width. Perforation or fenestration is not available on model 610 on F265E.

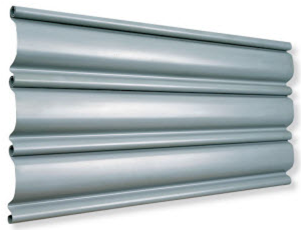

C-600 – For special applications requiring herculean size and strength, consider the 610 Series door with C-600 slats. This non-insulated, oversized door fits openings up to a maximum 1500 square feet (139.4 m2.), in widths up to 70′ (21,336 mm) and heights up to 30’4″ (9246 mm). The curtain is crafted with 6″ x 1 3/8″ (152 mm x 35 mm) curved, 18, 16 or 14-gauge steel slats for unparalleled strength and durability. No perforation or fenestration on model 610 on C-600.
Stormtite™ Model 620
Slat profile
Flat, insulated, type F-265
F-265 – available up to 30’4” (9246 mm) wide in 18 gauge. Other gauges are available. No perforation or fenestration is available on F265.
265E – 14 gauge extruded aluminum available up to 20’4” (6198 mm) width. No perforation or fenestration is available on F265E.
Exterior Color Options
Model 592 Colors
White Tan Gray Brown
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors and custom matching to specification.
