Thermacore® Sectional Door Model 596
Superior Performance & Built To Last
Thermacore® is the premier line of insulated sectional doors available today. The Thermacore® Sectional Door Model 596 is ideal for extra heavy-duty applications where thermal efficiency and sound suppression are desirable.
Exceptional Thermal Efficiency
Sound Suppression Capabilities
Thermacore® Model 596 incorporates the Thermacore® steel-polyurethane steel panel construction, which provides a thermal barrier to withstand harsh climates and demanding environmental requirements. The result is a solid, well-built door that keeps the weather and unwanted sound at bay.
Ideal Applications Include
Warehouse Solutions
Manufacturing
Food & Beverage
Automotive
Government Facilities
Thermacore® Sectional Door Model 596 Overview
.
Thermacore® Model 596, Flush panel, White Finish and (25”w by 12”h) Double Thermal Acrylic Windows
Thermal efficiency
U-factor* .10
R-value**: 17.4
thermal break: PVC
Air infiltration: at 15 mph (24 kmph): .08 cfm/ft² (1.46 m³/hr/m²)
Sound Transmission: Class 26 Ideal for applications that require sound control
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.
Max width: 36’2″
Max height: 24’1″
Section Thickness: 2″
Material: Steel
Material Gauge: 20-gauge galvanized
Exterior Surface Flush, textured
Standard Springs 10,000 cycles
Warranty
- 10 year limited delamination
- 1 year limited on door
- 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
- A chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Aluminum sash section available up to 24’2″ (7,366 mm) wide
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- Four-section pass door
- High-usage package
- Wind Load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Window Glazing Options
- Impact Section Available

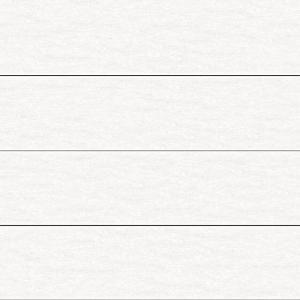

Flush panel
Colors
White Tan Gray Industrial Brown
Actual colors may vary from brochure due to fluctuations in the printing process. Always request a color sample from us for accurate color matching.
Glazing Options
Double Thermal Acrylic (25” w by 12” h)
Aluminum Sash Section* with DSB glazing
Insulated DSB (24” w by 7” h)
Clear Long** (44” w by 15” h)
