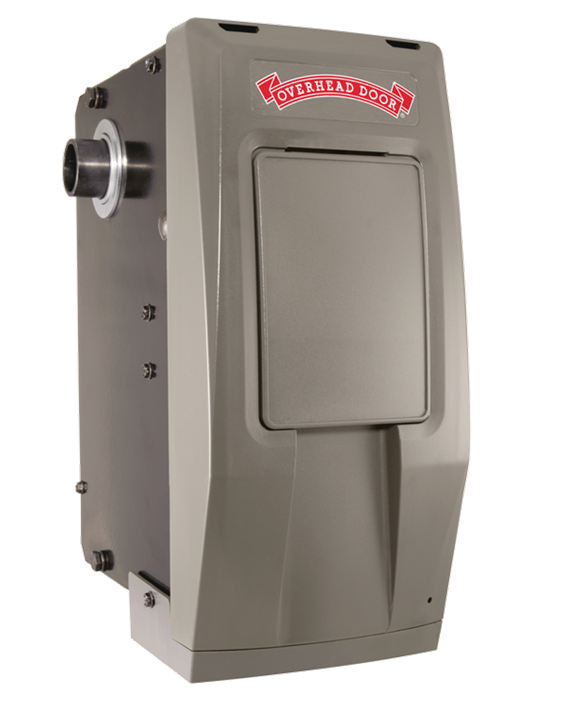

Infinity™ Wall Mount Garage Door Opener
The Infinity™ Wall Mount Opener is a quiet, powerful, compact wall-mount opener with optional OHD Anywhere® smartphone control and battery backup capabilities. Its side-mounted position is perfect for garages with limited headroom or constrained space. The 24V DC motor and robust design can lift most residential doors up to 14’ tall and 850 lbs. See the brochure for a complete list of features, benefits, and specifications.
The Ultimate in Power, Speed, and Convenience!
Max Door Height: 14’
Max Speed: 7.5″ per second
Drive Type: Wall Mount
Battery Backup: Y
Max Door Weight: 850 lbs.
Motor Type: 24V DC
OHD Anywhere: Y
Infinity™ Wall Mount Garage Door Opener
Quiet, Powerful, & Compact Wall Mount Opener
A space-saving wall mount design clears up ceiling space in your garage by attaching it directly to the garage door’s spring tube. Ideal for garages with beam obstructions
Built with design flexibility in mind, choose to have your opener with or without integrated Wi-Fi or battery backup
Bright LED light fixture included
3-Button Remote Included
Wireless Wall Console with up to 30 seconds delay feature comes standard
OHD Anywhere® compatible models work with leading smart home and delivery platforms such as Amazon Alexa and Google Home®
Standard Features and Benefits
DC Power: The DC motor operates with variable speeds for soft start and stop, providing smooth, quiet operation and less wear and tear on your garage door.
CodeDodger® access security system: Each time the remote control is activated, a new access code is selected from 4.3 billion possible combinations to help prevent piracy of the radio signal that opens your door.
Easy programming: Quick, effortless limit setting for faster installation.
Auto seek frequency range The opener listens for the 315 or 390 MHz frequency emitted by the remote or wireless keypad, allowing reliable operation even in areas with frequency interference.
Self-diagnostic Safe-T-Beam® System: When objects pass through the infrared beam, the door automatically stops closing and then reverses.
Lighting System: An 1800-lumen LED light fixture provides light and can be placed anywhere in the garage.
Door Lock: This ensures that the door cannot be opened from the outside without first pulling the release handle from the inside.
6’ Power Cord:
Automobile Convenience Features Compatible with HomeLink® and Car2U® systems. (no external repeater box or bridge needed)
Convenience Options
Digital Wireless Keypad: This illuminated keypad features a flip-up cover and lets you control up to three garage door openers.
Alternate Mounting Kit: The chain and sprocket coupling kit allows the Wall Mount opener to be installed above or below the door shaft in applications with obstructions.
Power Extension Kit: This kit allows installation and full power up to 30 feet from the opener when there is no power outlet within 5½ feet.
Universal Series Products
Compatible with the industry’s most popular garage door openers. Consolidate to a single remote, keypad, or wall console to control additional products from one device.
- Universal 4-Button Remote
- Universal Keypad
- Universal Wireless Wall Console
View our Garage Door Opener Accessories
Product Literature
Instructional Manuals
Warranties
Smart Garage Door Opener Integrated with OHD Anywhere®
Remotely monitor and control your sectional garage door from almost anywhere with your smart device.* Compatible with most iOS and Android mobile devices.
- Ability to monitor the door position (open or closed) and any change to the position
- Allows multiple user accounts to give others virtual access to your garage door
- Ability to know if an authorized user is operating the door with the OHD Anywhere® app
- Time-based features allow you to schedule door operation
- Maintains access history report for each opener
- The OHD Anywhere® app allows control of multiple OHD Anywhere®
- Wi-Fi-integrated garage door openers
Battery Backup Included
The Overhead Door® Battery Backup unit provides peace of mind by allowing the door to be opened and closed during a limited power outage.
- Several mounting options to choose from for added convenience
- Photo eye sensors with reversing features continue to operate
- Color-coded LEDs show current status (37229R)
California State Law SB-969 requires that all newly installed openers have a battery backup as of 07/01/2019.
To order this opener with battery backup, refer to Model 9120H-B or 9020H-B.
The bill resulted from the 2017 California wildfires that trapped some people in their garages.
