Modern Aluminum Garage Doors 9910/9920
. Crisp lines and sleek design formed from durable corrosion-resistant aluminum and light-filtering glass complement the natural light for your home.
.
Modern Aluminum Glass Model 9910, Black Finish, Satin Etched Glass
Transform your home’s appearance with a contemporary look with an aluminum glass garage door. The Modern Aluminum collection gives you the beauty of natural light during the day and a beautiful warm glow at night. Different glass options allow you to choose the right degree of natural light for your home.
Modern Aluminum Garage Doors 9910/9920 Overview
Our aluminum garage door model 9910 has a standard frame featuring a narrow width, an array of frame finishes, and special custom options in door sizes up to 16’.
Our aluminum garage door model 9920 features a wide, heavy-duty frame and offers an array of frame finishes and special custom options in door sizes up to 26’ wide. The Model 521 also offers a joint seal between sections for additional weather resistance and can be fitted to meet wind load building requirements.
Wind Load options are available for your Aluminum garage door to add protection from high-wind speeds
.

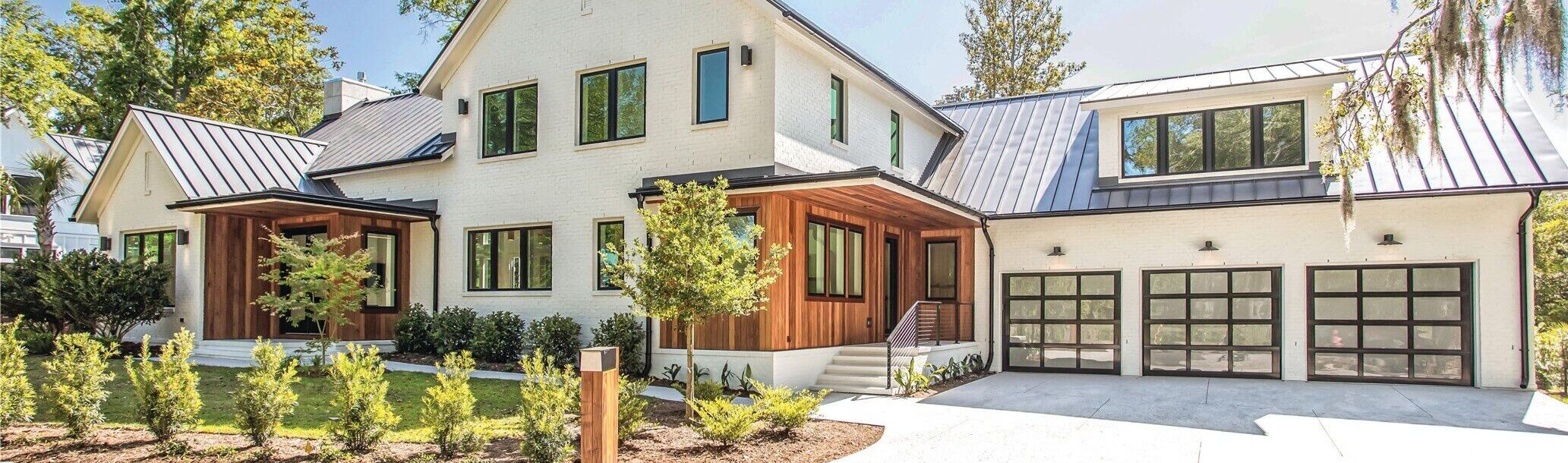

Modern Aluminum Glass Model 9920. Dark Bronze Finish, Satin Etched Glass
Construction – Product SpecificationsM
Max width:
- Model 9910 – 16 ft.
- Model 9920 – 26 ft.
Frames:
Model 9910 (511) – Standard, narrow rails and stiles. Integrated stiffening struts. Strong, lightweight struts are included in the design of the rail assembly to enhance durability.
Model 9920 (521) – Heavy duty, wide rails and stiles. Commercial-grade aluminum frame. Low-maintenance and corrosion-resistant.
Glass Garage Door Insulation: 9920: U-factor of up to .28
Integrated stiffening struts: To enhance durability, strong, lightweight struts are included in the rail assembly’s design.
Stylish hardware: Hinges and fixtures are galvanized to maintain a contemporary look.
Wind Load
Our WindStorm™ wind load rated system is available on selected products to meet regulations for various wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes. Wind load is not available on model 9910 (511).
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.
Overhead Door™ Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.
The symbol indicates a verified U-factor rating following the DASMA Thermal Performance Verification Program.
Design flexibility
Available in various vertical rail widths and horizontal stile widths to complement the style of your home.
Solid aluminum panels
Available for a unique, distinctive look.
Glass
An array of glass choices are available (both insulated and non-insulated), including double-strength, obscure, satin, laminated white, low E, tempered, tinted, clear polycarbonate, multi-wall polycarbonate, and clear acrylic.
Wind load Model 9910
It can be fitted to meet wind load building requirements.
9910 – 7ft 9910 – 8ft 9920 – 7ft 99120 – 8ft
Colors
Clear (standard) Light Bronze Medium Bronze Dark Bronze
RAL Powder Coat
197 optional RAL powder coat color options are available. The actual door color may vary from the digital representation shown here. Color samples are available; please get in touch with us.
Glass Options
Double Strength Obscure Satin Etched Gray Tint Green Tint
(DSB) Standard
Bronze Tint Impact Frosted Polycarbonate
Specialty Glass:
- Laminated White – privacy
- Low E Glass* – thermal efficiency
- Tempered Glass – enhanced safety
- Tinted Glass* – color options: Green, Grey, Bronze
Glass Alternatives:
- Cl ear Lexan® Polycarbonate* – shatter-resistant
- Multi-Wall Polycarbonate – superior strength with UV protection; color options: Clear, White, Bronze
- Plexiglas® Acrylic* – shatter resistant
- Impact Clear and Frosted Polycarbonate – 0.250″ minimum
Product Literature
Brochure – Modern Aluminum Collection
aluminum-garage-door-impact-rated-brochure
windload-garage-doors-brochure
Specifications
Warranties
Modern Aluminum Garage Doors 9910/9920
Crisp lines and sleek design formed from durable corrosion-resistant aluminum and light-filtering glass complement the natural light for your home.
The Modern Aluminum collection gives you the beauty of natural light during the day and a beautiful warm glow at night. Different glass options allow you to choose the right degree of natural light for your home.
Modern Aluminum Garage Doors 9910/9920 Overview
Our aluminum garage door model 9910 has a standard frame featuring a narrow width, an array of frame finishes, and special custom options in door sizes up to 16’.
Our aluminum garage door model 9920 features a wide, heavy-duty frame and offers an array of frame finishes and special custom options in door sizes up to 26’ wide. The Model 521 also offers a joint seal between sections for additional weather resistance and can be fitted to meet wind load building requirements.
Wind Load options are available for your Aluminum garage door to add protection from high-wind speeds
Construction – Product SpecificationsM
Max width:
- Model 9910 – 16 ft.
- Model 9920 – 26 ft.
Frames:
Model 9910 (511) – Standard, narrow rails and stiles. Integrated stiffening struts. Strong, lightweight struts are included in the design of the rail assembly to enhance durability.
Model 9920 (521) – Heavy duty, wide rails and stiles. Commercial-grade aluminum frame. Low-maintenance and corrosion-resistant.
Glass Garage Door Insulation: 9920: U-factor of up to .28
Integrated stiffening struts: To enhance durability, strong, lightweight struts are included in the rail assembly’s design.
Stylish hardware: Hinges and fixtures are galvanized to maintain a contemporary look.
Wind Load
Our WindStorm™ wind load rated system is available on selected products to meet regulations for various wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes. Wind load is not available on model 9910 (511).
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.
Overhead Door™ Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.
The symbol indicates a verified U-factor rating following the DASMA Thermal Performance Verification Program.
Product Literature
Brochure – Modern Aluminum Collection
aluminum-garage-door-impact-rated-brochure
windload-garage-doors-brochure
Specifications
Warranties
Garge Door Designs
Color Options:
Anodized Finishes
A clear anodized finish comes standard. Black, Light, Medium, and Dark Bronze anodized finishes are also available.
Clear (standard)
Light Bronze
Medium Bronze
Dark Bronze
Select from approximately 200 powder coat color options to best match your home. Actual door color may vary slightly from the digital representation above. Color samples are available by request
Glass Options:
Various glass options are available, including clear, obscure, and satin.
Satin
Obscure
Bronze Tint
Gray Tint
Green Tint
Double Strength
DBS* (Standard)
impact Frosted
Polycarbonate
Specialty Glass:
- Laminated White – privacy
- Low E Glass* – thermal efficiency
- Tempered Glass – enhanced safety
- Tinted Glass* – color options: Green, Grey, Bronze
Glass Alternatives:
- Cl ear Lexan® Polycarbonate* – shatter-resistant
- Multi-Wall Polycarbonate – superior strength with UV protection; color options: Clear, White, Bronze
- Plexiglas® Acrylic* – shatter resistant
- Impact Clear and Frosted Polycarbonate – 0.250″ minimum
